Skyeview Residential

Skyeview Residential is a modern four-storey condominium development with underground parking serving View Royal, British Columbia.

View Royal, British Columbia
Condominium Building
Four Storeys Plus Underground Parkade
37 Residential Units
Fire Protection System Details

Project Overview

Skyeview Residential is a modern four-storey condominium development with underground parking serving View Royal, British Columbia. The building comprises 37 residential units and provides secure parkade parking for residents, contributing to the community's growing residential density while maintaining quality living standards.

Fire Protection System

The fire alarm system at Skyeview Residential incorporates advanced smoke control technology through building pressurization, providing enhanced life safety protection for residents.
‍

System Components:
‍

  • Control Panel: FW106 control panel providing single-loop capacity with all required notification circuits
    ‍
  • Annunciation: FW129 annunciator prominently displayed in the main floor lobby for system status monitoring
    ‍
  • Detection Devices:
    • FW511 smoke detectors providing comprehensive coverage in common areas and elevator shaft
    • FW521 heat detectors for rapid heat detection in critical zones
  • Manual Alarm Activation: FW722 manual pull stations positioned at all egress locations
    ‍
  • Notification System:
    • FW971 horns installed in common areas
    • FW972 mini-horns providing in-suite notification for residents
  • System Integration:
    • FW811 and FW812 input modules supervising fire and smoke suppression systems
    • FW562 duct detectors integrated within HVAC system
    • FW831 relay modules activating smoke control through building pressurization system and controlling dampers
  • System Reliability: FW851 isolator modules maintaining system integrity across zones and fire separations

Products Installed

FW106 Fire Alarm Control Panel

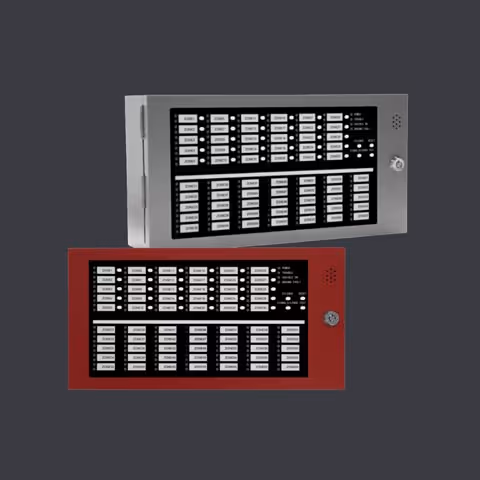

FW129 Remote LED Annunciator

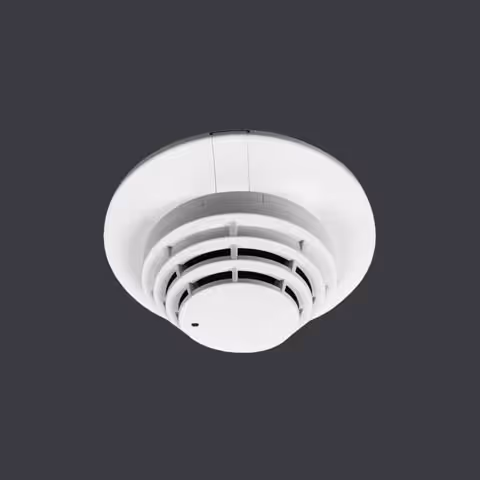

FW511 Photoelectric Smoke Detector

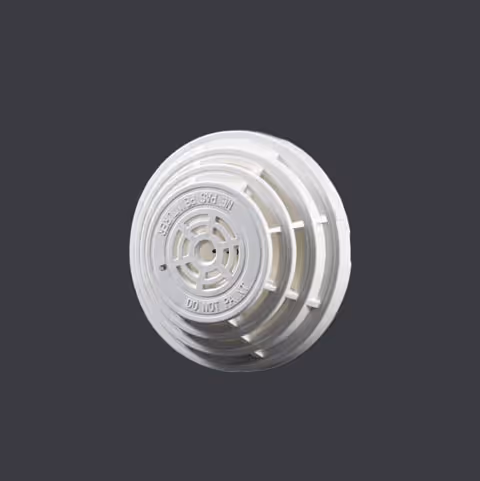

FW521 Heat Detector

FW722 Addressable Manual Station

FW971G Horn

FW962G Multi-Candela Horn/Strobe

Project Significance

This project brings quality condominium living to View Royal with sophisticated fire safety systems that include pressurization technology to control smoke movement and protect residents during emergency events.

‍
